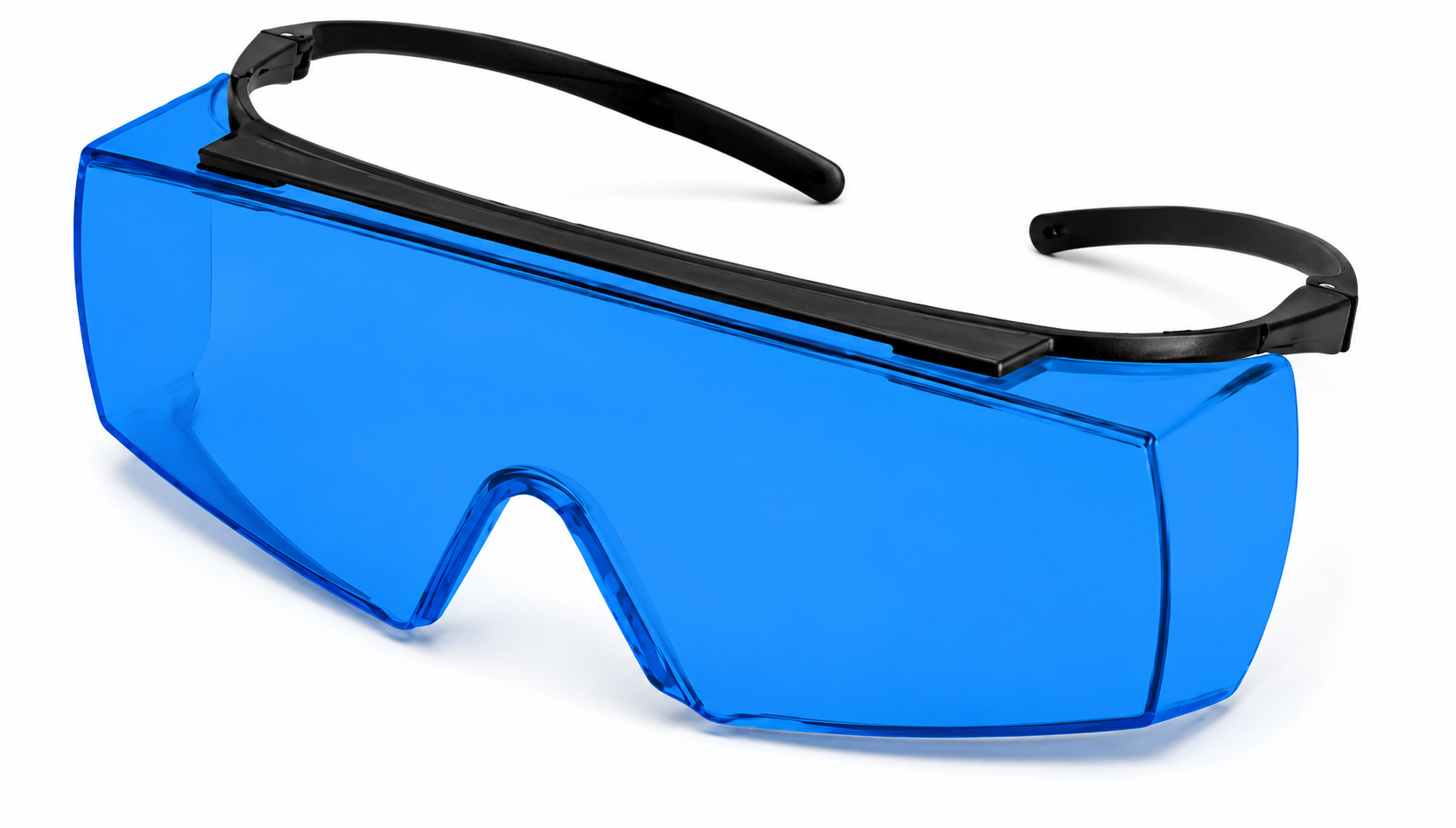

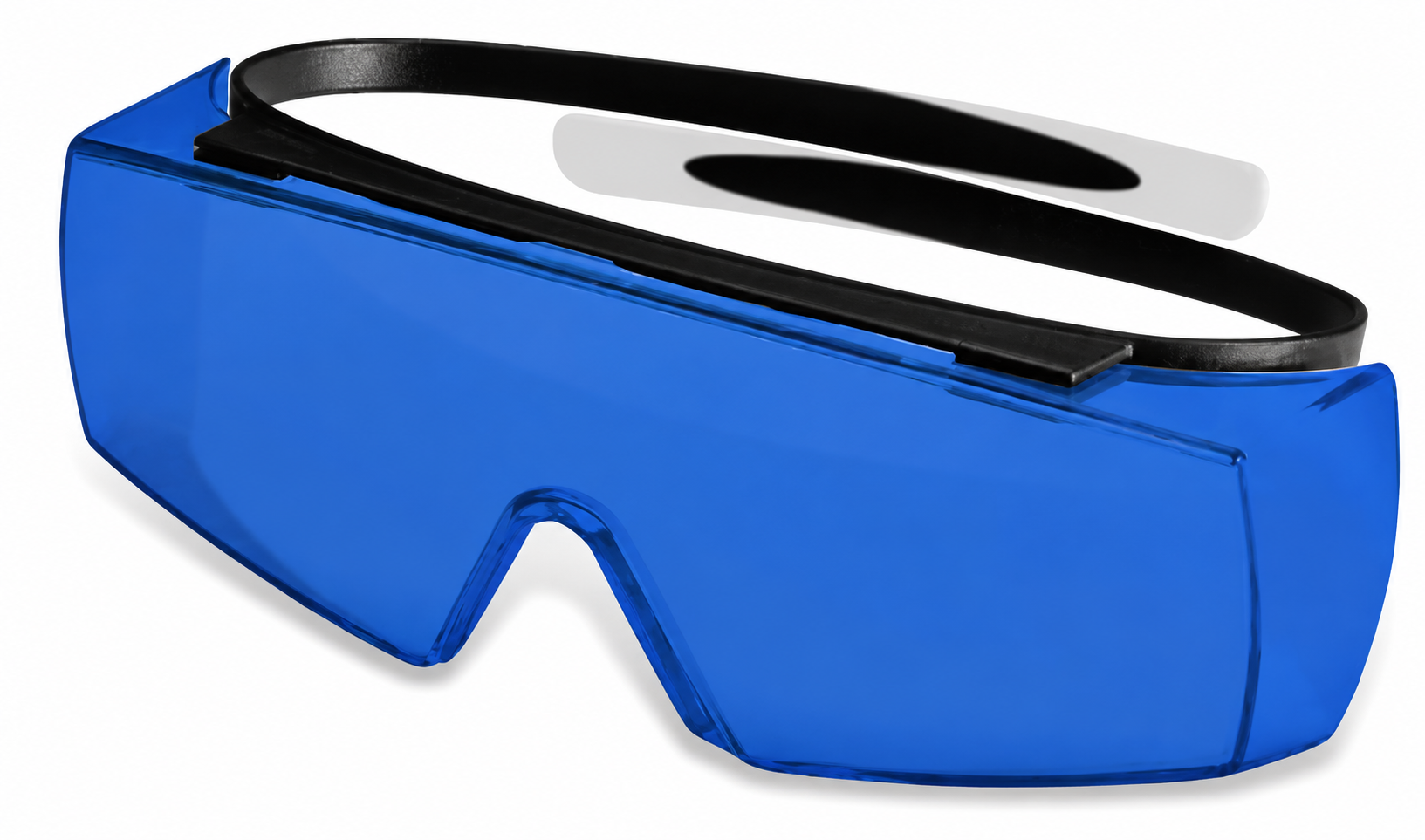

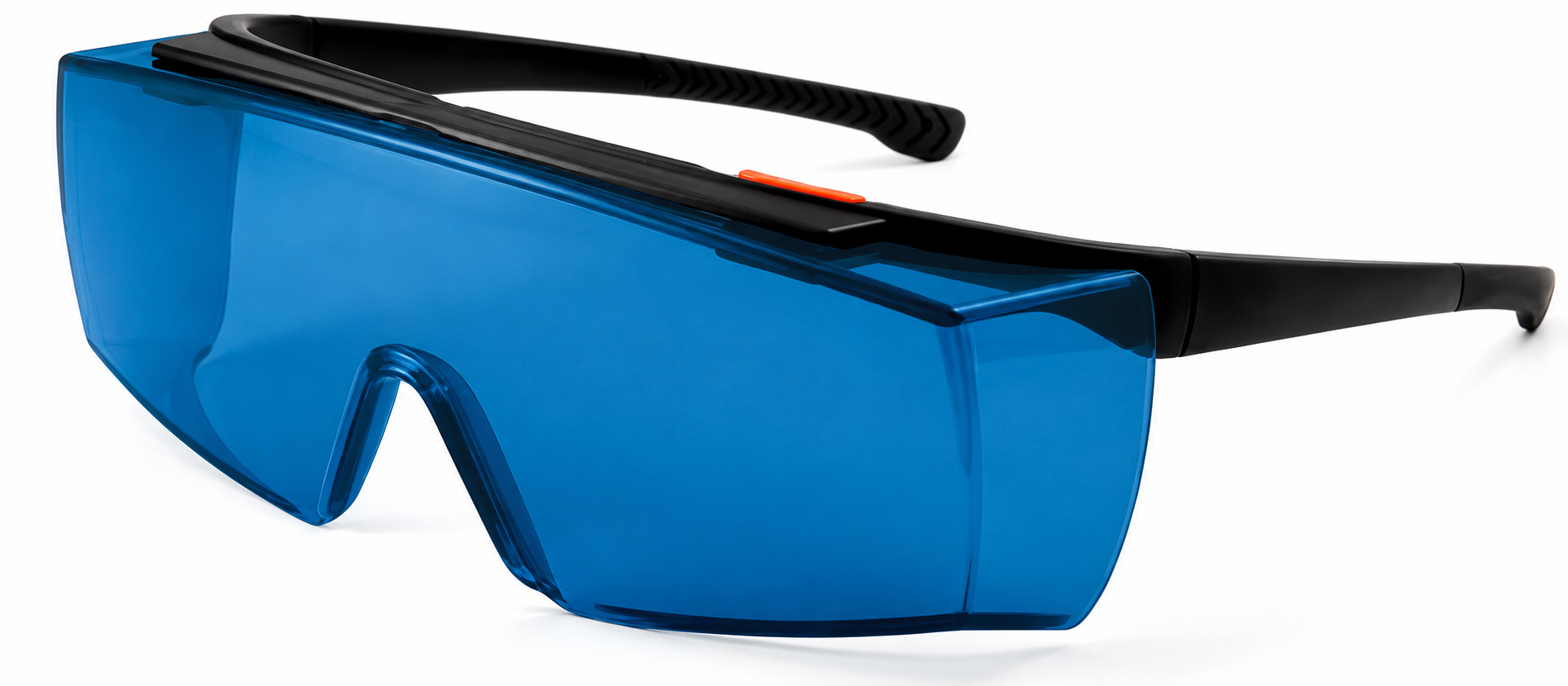

P5H03, Laser Safety Goggles
The P5H03 laser safety goggles use a blue polycarbonate filter with 10% visible light transmission (VLT) and protect against Alexandrite, Diode, He Ne, Ruby lasers. Supplied by Britton, Bengaluru, India.
Protection levels (optical density):
- OD 1+ @ 570 - <578 nm
- OD 2+ @ 578 - <595 nm
- OD 3+ @ 595 - <610 nm
- OD 5+ @ 610 - <630 nm
- OD 6+ @ 630 - <660 nm
- OD 7+ @ 660 - 775 nm
- OD6+ @ >775 - 790 nm
- OD5+ @ >790 - 800 nm
- OD4+ @ >800 - 820 nm
- OD3+ @ >820 - 835 nm
Always confirm that the optical density and wavelength range match your laser before use. Select a suitable frame from the datasheet.
Material: Polycarbonate
Color: Blue
VLT: 10%
Filter Specifications (OD):
OD 1+ @ 570 - <578 nm
OD 2+ @ 578 - <595 nm
OD 3+ @ 595 - <610 nm
OD 5+ @ 610 - <630 nm
OD 6+ @ 630 - <660 nm
OD 7+ @ 660 - 775 nm
OD6+ @ >775 - 790 nm
OD5+ @ >790 - 800 nm
OD4+ @ >800 - 820 nm
OD3+ @ >820 - 835 nm
OD2+ @ >835 - 850 nm
OD1+ @ >850 - 870 nm
Common Laser Types: Alexandrite, Diode, He Ne, Ruby, Ti:Sapphire
Please select a suitable frame from the datasheet.
