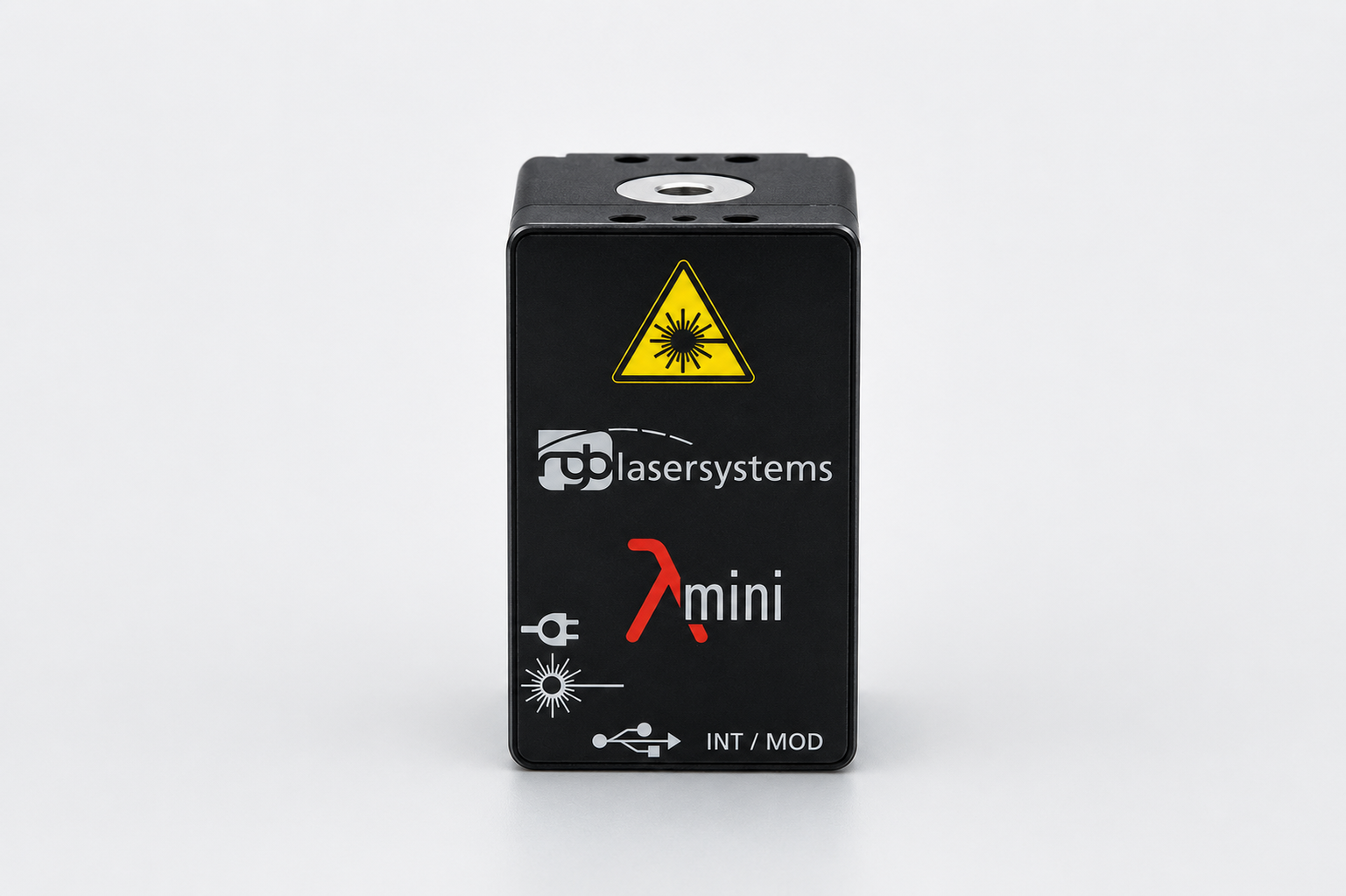

DLA490521, Lambda mini EVO 830-50, 830 nm, 50 mW, subminiatur laser, integr. controller, CW
Lambda Mini
Miniaturized laser module complete with controller and USB power supply in an incredibly small package.
· Incredibly small yet fully featured
· Output powers up to 100 mW
· excellent value for money
· Powered via USB: no extra power adapter or cable required
Wavelength: 830nm
Power: 50mW
Beam diameter: 1.1 x 2.2 to 1.2 x 2.8 (depending on wavelength)
Divergence: < 0.9 mrad
Spatial beam mode: TEMoo
Polarization: linear, > 100:1
Beam alignment: < 5mrad and < 0.1 mm (compared to base mount)
Pointing stability: < 5 μrad/K
Dimension: 40.0 x 25.0 x 25.0 mm (technical drawing available)
Weight: 41g
Warm-up time: 5 sec
Noise: < 2% RMS
Power stability: < 2% (10h) under stable environmental conditions
Drive mode: active current control
CDRH classification: 3b
Operating temp.: 0°C to 45°C (non-condensing)
Storage temp.: -25°C to 70°C
